SEAT SWIVELS FOR CAMPERVANS AND MOTORHOMES

We supply Seat Swivels or Swivel Bases for Fiat, Peugeot, Citroen,  Ford, Iveco, Mercedes, Nissan, Vauxhall, Renault, Toyota, LDV and Volkswagen Campervans and Motorcaravans.

We source only the best components from leading manufacturers to ensure the safety of the occupants.







Peugeot Boxer, Fiat Ducato & Citroen Relay

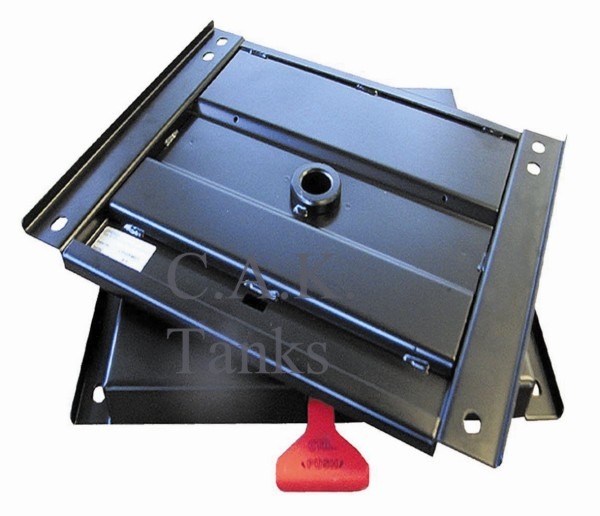

Fiat Ducato, Peugeot Boxer and Citroen Relay. 2006 onwards. CTA, Left hand & right hand seat swivel H=44mm swivel to miss existing seat box front cover.



Ducato, Talbot Express, Citroen, Universal seat Swivel, Pre 1994 only. 430 x 350mm. SWVL1R RIGHT HAND SWVL1L LEFT HAND

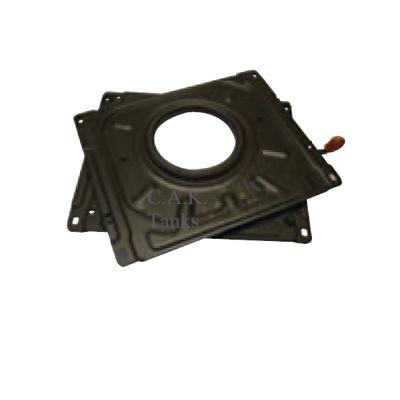

Fiat Ducato, Peugeot Boxer, Citroen Relay, 1994 to 2006 model year. SWV3CT Fits LH or RH



IVECO

Iveco Daily 1999/2000 onwards left & right hand seat swivel. SWV15CT



MERCEDES SPRINTER &  VW LT

Mercedes Sprinter & Volkswagen VW LT Pre 96-06. SWVL5L Left SWVL5R Right Hand

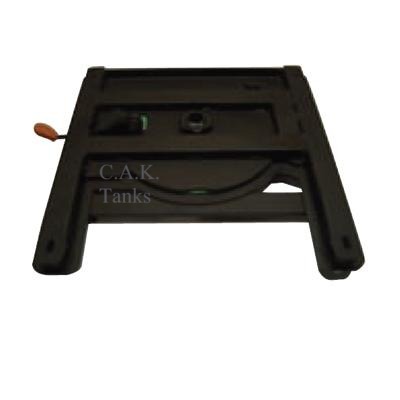

VWT5

New VW Volkswagen T5 2003/4 onwards. Size 454mm x 464mm. Drivers side requires a handbrake lowering bracket to install. SWVL16R for RH seat SWVL16L for LH seat

VW Volkswagen T5 Handbrake adaptor SWVL16HBA for installing RH UK drivers swivel.



VAUXHALL MOVANO, REANAULT MASTER & NISSAN INTERSTAR

2004 up to 2010 LH or RH seat  SWV10CT



2010 on including NV400 SWV14CT



Many more swivels in stock check our online shop



VERY HIGH QUALITY ENGINEERED SEAT SWIVEL BASES CE APPROVED

As a safety critical item seat swivels are CE approved for peace of mind. You only find out how good your seat swivel is when you survive to tell the tale. Build quality
of seat swivels is imperative, as it has to meet or exceed the strength of the vehicle manufactures design criterion for seat & seat belt mountings. Short cutting in this area is unsafe and unwise. Within the FASP, CTA and MAPA ranges are swivels engineered to the highest automotive standards to meet or exceed the
requirements of the Original Vehicle Manufacturer. The swivels are fabricated from heavy gauge steel & swivel around a large central pivot. The swivel plates
sandwich a special self lubricating nylon wear plate thereby making the swivel virtually maintenance free.
Fixing bolts are not supplied with FASP swivels; use the equivalent or stronger bolts to the same design as the bolts installed by vehicle manufacturer. The strength
rating is usually stamped into the head of the bolt (8.8, 10.2 or 12) as well as the size (M8, M10, etc.) please ensure you use suitable bolts.
CE certification standards (a) TESTED and APPROVED according to CEE 96/38 & or 2005/41/CE. (b) HOMOLOGATED according to CEE 96/37 – 96/38.



SEAT SWIVEL INSTALLATION GUIDANCE

For most installations the seat swivel will be installed onto the seat box with the seat and seat runners on top of the swivel. Firstly where fitted remove the seat belt from the anchor point on rear end of seat slide. Then remove the four or six bolts holding seat to sliders and retain. Now remove the four or six bolts holding sliders to seat box and retain. Purchase from the vehicle manufacturers main dealer four or six bolts to the same strength specification as the ones removed from the seats. Bolt the swivel onto the seat box with the original bolts used. Now bolt the seat slides onto the top plate of the swivel using the new bolts purchased. Next bolt the seat back onto the seat slides using the original bolts. Finally re fit the seat belt to its anchor point if removed. For some applications it will be the case that the swivel is installed between the sliders and the seat. This will be evident by the bolt hole.
