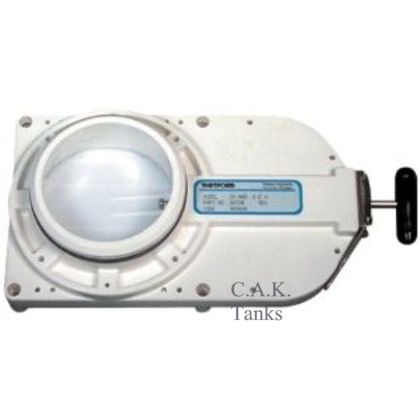

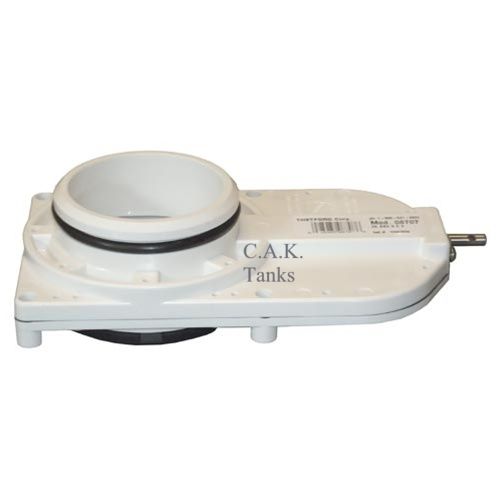

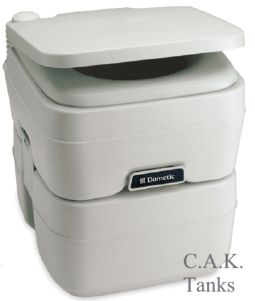

	SLIDE EZ-VALVES AQUA MAGIC V BRAVURA ELECTRA MAGIC SOG THETFORD		PORTA POTTI'S CASSETTES C200 CASSETTE C250 CASSETTE SPARES DOMETIC		C400 CASSETTE BASE TANKS CHEMICALS SERVICE DOORS MAINTENANCE CT3000 CASSETTE



WE ARE THETFORD’S PREMIER SPARES CENTRE. WE ARE ABLE TO SUPPLY ANY THETFORD SPARE PART THAT IS CURRENTLY AVAILABLE & QUITE A RANGE OF OBSOLETE PARTS.



CASSETTE C-200 SWIVEL BOWL
The elegant, domestic bathroom style bowl of the Thetford Cassette C-200 can be swivelled through 180 degrees on its pedestal locking securely at any stage the user chooses. So the toilet can be fitted freestanding against any single wall in the vehicle bathroom area. And the bowl can be swivelled away after use to liberate space. A led signal that lights automatically when the holding tank is nearly full, and a contoured shape that shrugs off shower water are amongst other unique features.

C200CS uses water directly from the fresh cold water supply system in the vehicle.
Suitable for pressurised and micro switched water systems.

C200CW uses water manually pumped from its built in fresh water tank within toilet. Toilet requires a water fill door installed on outside in addition to door used for cassette base tank removal.

C200CWE has similar features to the C200CW with the addition of touch button electric flush.

THETFORD C200 TOILET BOXED INSTALLATION KITS INC DOOR
TLTC200CS CASSETTE C200CS DIRECT ELECTRIC WHITE + DOOR 3
TLTC200CW CASSETTE C200CW MANUAL WHITE + WATERFILL & DOOR 3
TLTC200CWE CASSETTE C200CWE ELECTRIC WHITE + WATERFILL & DOOR 3

THETFORD C200 TOILET & WASTE CASSETTE ONLY NO DOOR OR ACCESSORIES
TLTC200CSND CASSETTE C200CS DIRECT ELECTRIC WHITE NO DOOR
TLTC200CWND CASSETTE C200CW MANUAL WHITE NO DOOR
TLTC200CWEND CASSETTE C200CWE ELECTRIC WHITE NO DOOR
23786 Optional outside vent kit for C200.





THETFORD C200CS                     THETFORD C200CW / CWE



C200 Cassette Specifications
Model	C200CW	C200CWE	C200CS
Flush Method	Manual	Electric	Electric
Waste Tank Capacity	17 Ltr	17 Ltr	17 Ltr
Flush Water Capacity	7 Ltr	7 Ltr	Direct Flush
Colour	White	White	White



CASSETTE C400 RANGE
New elegantly designed bench model toilet for caravans and motorhomes. The award winning C400 range are elegantly designed toilets to match modern bathrooms.
Packed with innovative features such as the holding tank with wheels and a retractable carrying handle. Not as an option but standard on all C400 models. Stable thermoplastic rubber treaded wheels allow easy and reliable transport of the waste holding tank. Toilet waste holding tank transport with an ease never experienced before. The removable mechanism plate allows easy access to the waste holding tank inner for cleaning or service, a major feature of the C-400. No more fumbling in the dark! Comfortable seating position higher and deeper than models before, allowing
for more comfort when in use. Plus more space for the feet due to the recessed base. Really practical in an often confined vehicle bathroom. The flowing curved shape  allowing easy cleaning, leaving no dirt traps.

C400 Range Key Features
• Finish: white (RAL 9003)
• Electric touch button flush (12V)
• Waste holding tank with integrated wheels
• Waste tank with handy extendable carry / pull handle
• Removable plate allows access to waste tank interior for easy cleaning and service
• Integrated pour-out-spout: no handling of separate parts that get dirty
• Waste tank vent button allowing splash free emptying
• Weight: 8,5 kg

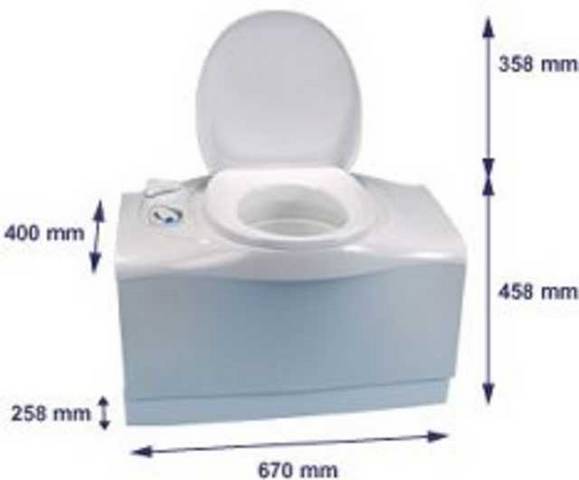

Cassette C402C
The starter model in the range, the Cassette C402C toilet has an integrated freshwater tank, powerful touch button electric flush and single led high level indicator for waste holding tank only. Easy waste transport: holding tank on wheels! Optional external vent.

Features:
• LED display indicates fill level of waste tank
• Waste tank capacity: 19,3L
• Integral freshwater tank capacity: 15L
TLTC402CL CASSETTE C402C LEFT HAND & DOOR 3
TLTC402CR CASSETTE C402C RIGHT HAND & DOOR 3

Cassette C402X
The Cassette C402X toilet has an integrated freshwater tank, powerful touch button electric flush and led level indicators for waste holding tank and flushwater tank. Easy waste transport: holding tank on wheels! A quick touch the flush button and the LED level indicator system displays how much capacity is still available in both flushwater tank and waste tank. Optional external vent. This is our most popular C400.

Features:
• LED display indicates fill level of waste tank and flush water tank in 3 steps
• Waste tank capacity: 19,3L
• Integral freshwater tank capacity: 15L
TLTC402XLD3 CASSETTE C402X LEFT HAND & DOOR 3
TLTC402XRD3 CASSETTE C402X RIGHT HAND & DOOR 3

Cassette C403L
The Cassette C403L toilet hooks up to the central water tank of the vehicle. Touch button electric flush. Easy waste transport: holding tank on wheels! A quick touch the flush button and the LED level indicator system displays how much capacity is still available in the waste holding tank. External venting of waste tank standard.

Features:
• LED display indicates fill level of waste tank 3 steps
• Waste tank capacity: 19,3L
• No integrated freshwater tank. Toilet connected to central water system of caravan or motorhome. Direct flush.
TLTC403LLD3 CASSETTE C403L LEFT HAND & DOOR 3
TLTC403LRD3 CASSETTE C403L RIGHT HAND & DOOR 3

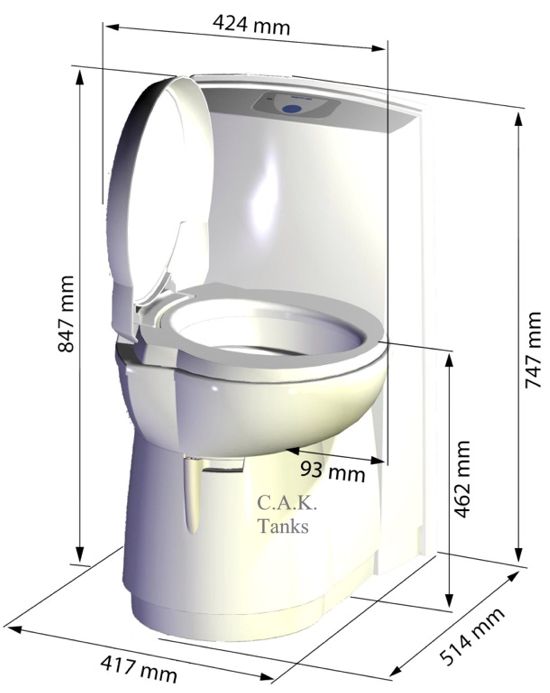

THETFORD CASSETTE C260
The C260 Cassette Toilet is a ‘facelift’ the C250 Cassette Toilet. With its 2 x 90 degree revolving toilet bowl, the C-260 has several exciting new, improved features and a contemporary design. A more stable seat & cover, easier to clean bowl design and an improved flush are some examples. This toilet is also available with a full ceramic
bowl for a true home-like sanitary experience. Enhanced seating comfort: the toilet bowl width and depth have been adjusted to provide maximum comfort. • A wasteholding tank (17.5L) on wheels with a pull-out handle. • A user-friendly control panel. C262CWE with integrated 8 L flush water tank. Packed Complete with Thetford Door 3 and accessories in kit.

TLTC263CS C263CS DRAWS FLUSH WATER FROM ONBOARD PUMPED WATER SYSTEM
TLTC262CWE C262CWE ELECTRIC FLUSH FROM INTEGRATED FLUSH WATER
TLTC263CSC C263CS CERAMIC BOWL DRAWS FLUSH WATER FROM ONBOARD PUMPED WATER SYSTEM
TLTC262CWEC C262CWE CERAMIC BOWL ELECTRIC FLUSH FROM INTEGRATED FLUSH WATER



SOG SYSTEM – Chemical free operation of your toilet system

The SOG toilet ventilation kit converts your Thetford toilet into a chemical-free system which is not only a completely green solution but also banishes smells from the interior of your unit. No chemical smells and no smells from waste matter, even during use of the toilet. Toilet chemicals are no longer necessary and optimal decomposition is guaranteed by the increased flow of Oxygen. You can also use ordinary toilet paper. Supplied as a very simple diy-fit kit.

Spare SOG parts and additional connectors available from our stock contact us for further information

SOGA for Thetford Cassette Toilets C2 C3 C4	SOGB for Thetford Cassette Toilet C200



SOGF for Thetford Cassette Toilets C250 & C260	SOG3000A for Dometic Toilet CTS3110 & CTW3110







SPARE CASSETTE BASE TANKS
All our base tanks are new original products from Thetford. They will come correctly handed as per your ordered hand. You will not need to modify or dismantle them; they will glide straight in ready for use. To identify the handing of your required base tank, it is handed by describing the end of the toilet where the door is to remove the cassette. This handing is described as seated on the toilet NOT AS LOOKING AT IT. This does not apply to the C200 & C250 swivel bowl units as their base tanks only slide in one way. You can identify which model toilet you have by locating the silver and blue Thetford serial number label just inside the door end of the toilet.

C200 SWIVEL BOWL Spare base tank for C200 series swivel bowl all models. TLTC200BTANK C200 base tank complete

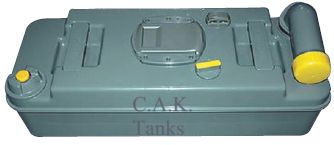

C2, C3, C4 FIXED BOWL OLDER BENCH MODEL This is the base tank for the older model bench toilet. Handing is identified as seated on the toilet. TLTC234BTNKL C2, C3, C4 LEFT HAND BASE TANK. TLTC234BTNKR C2, C3, C4 RIGHT HAND BASE TANK.

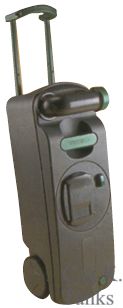

C250 / C260 SWIVEL BOWL Spare base tank for New C250/C260 series swivel bowl all models. This model base tank is complete with wheels. TLTC250BTNKC250 base tank complete (Wheeled model).	C400 SPARE BASE TANKS & ACCESSORIES This is the base tank for the newer model C400 bench toilet as described above. Handing is identified as seated on the toilet. TLTC400BTANKL C400 LEFT HAND BASE TANK (Wheeled model) TLTC400BTANKR C400 RIGHT HAND BASE TANK (Wheeled model) TLTC400VENT C400 THRU FLOOR OUTSIDE VENT	NEW C500 BASE TANKS Handing is identified as seated on the toilet. TLTC500BTKR C500 BASE TANK RIGHT HAND TLTC500BTKL C500 BASE TANK LEFT HAND

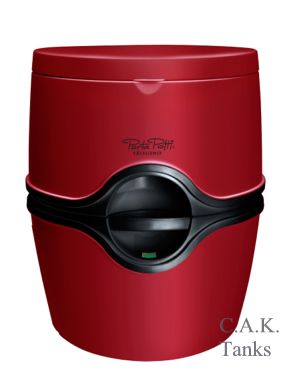

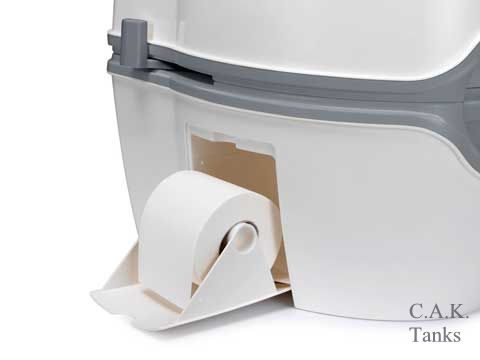

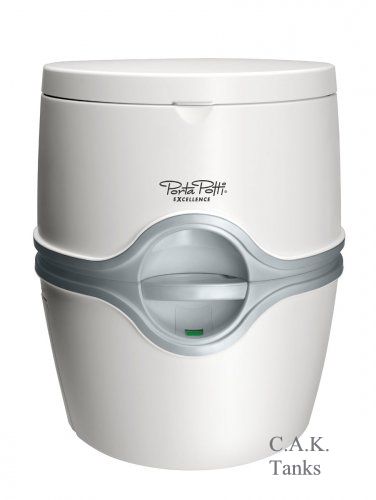

PORTA POTTI EXCELLENCE 565
The Porta Potti Excellence has by far the most striking design and innovative features of all. The Porta Potti excellence has a Modern design, more homelike toilet shape with a Comfortable seating height (440 mm), Bigger bowl size, mainly in depth and width, User friendly valve handle at side, Integrated toilet paper holder, Flush-water & waste water level indicators, Cover controls (for piston pump, water fill cap, water level indication), Water fill adaptor and Improved carry handle of the water tank. White, Ivory and Ruby red with manual piston pump or Granite with battery operated
electric pump (six 1.5v AA batteries enough for 500 to 700 flushes) Waste tank capacity 21L, flush water capacity 15L, Seating height 443mm, height 458 x width
388mm x depth 450mm
TLPPEXMW PORTA POTTI EXCELLENCE 565P MANUAL WHITE

TLPPEXEG PORTA POTTI EXCELLENCE 565E ELECTRIC GRANITE
TLTPPEXMP FLOOR MOUNTING PLATE FOR PP EXCELLENCE

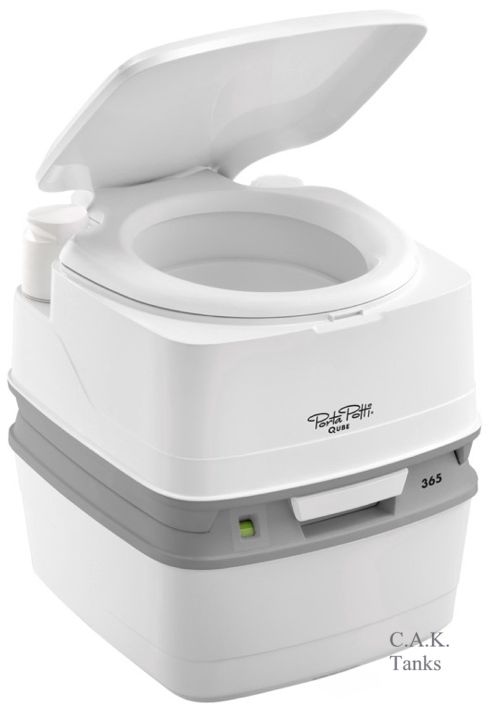

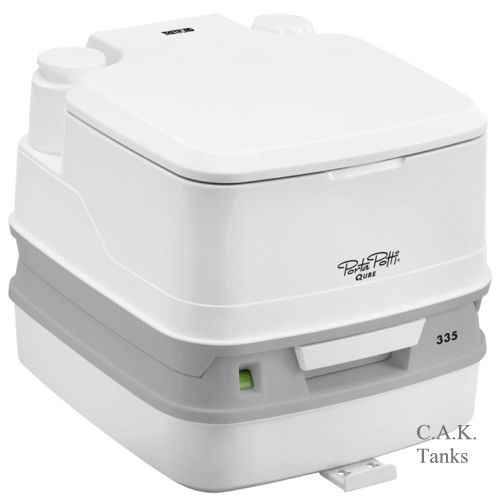

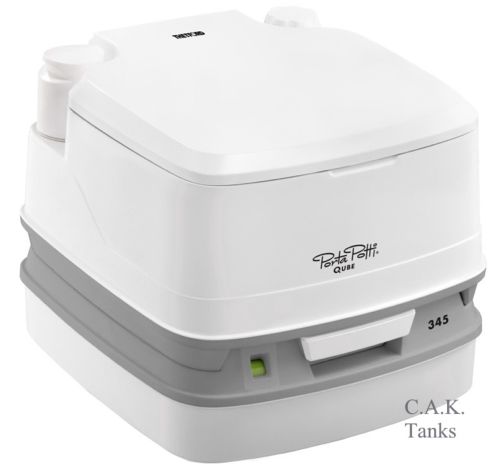

PORTA POTTI QUBE
Porta Potti Qube forms the basis for our new generation of durable portable toilets. We guarantee all the quality you have become accustomed to, transformed into a new and fresh design. The smooth lines and subtle curves are not just important towards the appearance of our toilets; they also provide optimum comfort and ease of use. The toilets are equipped with an integrated cover lock, a recess for opening the cover, an improved blade opener as well as a more comfortable handle on the waste-holding tank. The stopper on the waste-holding tank holds the emptying spout in position, making it easier to mount one tank on top of the other. Our Porta Potti’s come with a three year warranty. HOLD DOWN BRACKET INCLUDED WITH PPQ335 OPTIONAL KIT
AVAILABLE for PPQ365.

 All Thetford Porta Potti and Cassette toilets have the swivelling pour out spout system and pressure release button for splash free emptying.







PP Qube 335                         PP Qube 345                        PP Qube 365







Permanent installed RV type Toilets with Underfloor holding tanks



THETFORD AQUA MAGIC V
The Thetford Aqua Magic V is a modern, economical model that is easy to install and is operated by one two stage lever at the top of the toilet. This toilet can be supplied in two heights. In the case of the high model the waste tank is installed under the floor, and with the low model it is installed above the floor when used in boats.

Features: * Finish: white * Hook-up to vehicles central water tank: yes * Hand operated by a 2 stage lever * Better flush – full bowl coverage * Waste tank capacity: dependent upon vehicle * Flush water tank capacity: dependent upon vehicle * Depth 455mm x Width 383mm x Height 5L 329mm, 5H 445mm TLTAM5L Aqua magic V low hand lever operated white TLTAM5H Aqua magic V high hand lever operated white

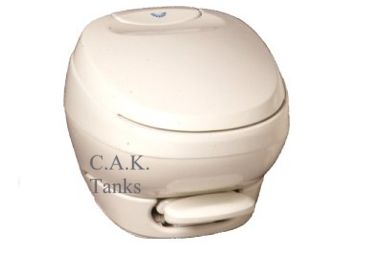

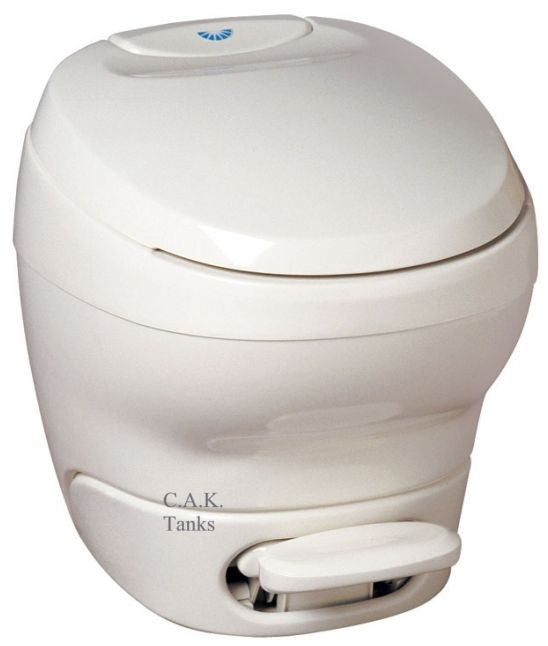

THETFORD BRAVURA
The Thetford Bravura is a floor mounted, fresh water-flush toilet. Flush water for the Bravura is drawn from an independent pressurised water supply. Waste is released into a permanent holding tank, which is installed below the floor, and is drained off outside the caravan or motorhome with the slide valve. Low model suitable for boats with above floor holding tank.

Features:
* Finish: white * Hook-up to vehicles central water tank: yes
* Convenient single-foot-pedal operation * Powerful pulsating flush with full bowl coverage  * Comfortable seat and height * Deep bowl so less splashing
* Stylish design and smooth surface allowing easy cleaning
* Easy installation and access of parts * Available in high and low profiles

TLTAMBH Aqua magic Bravura high pedal operated white	TLTAMBL Aqua magic Bravura low pedal operated white

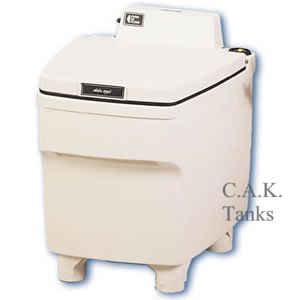

THETFORD ELECTRA MAGIC
This is a recirculating toilet suitable for buses and touring units. A silent toilet that never gets blocked. This model does not require a separate waste holding tank nor
a connection to a water supply line. The toilet is charged with clean water and toilet additive. The pump recycles the fluid and solids are collected by a double filter
system. The double filter system takes away any risk of obstruction. An easy to read level indicator signals the initial charge level and warns when the waste tank is
almost full. A valve underneath the toilet is opened to evacuate the waste into a holding tank, and the process starts again. The tank is then emptied at an authorised
disposal point. Toilet can be operated on it own capacity without a holding tank if the installation needs require this.



Features: * Finish: parchment * Flush: electric (12 or 24 Volt versions) * Initial charge volume (fresh water + toilet additive): 9,2 L * Waste capacity: 14,3L * Total unit capacity: 23,5L TLTEMAG12 Electra magic recirculating 12 v TLTEMAG24 Electra magic recirculating 24 v

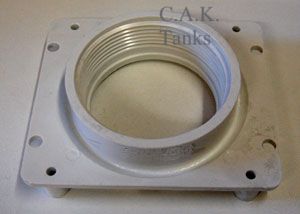

ACCESSORIES FOR AQUA MAGIC, MKIV, MKV
STARLITE, ELECTRA MAGIC & BRAVURA

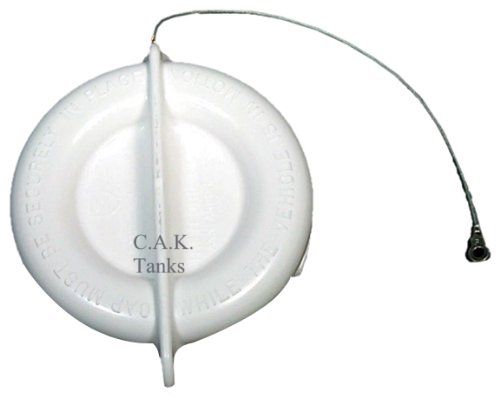

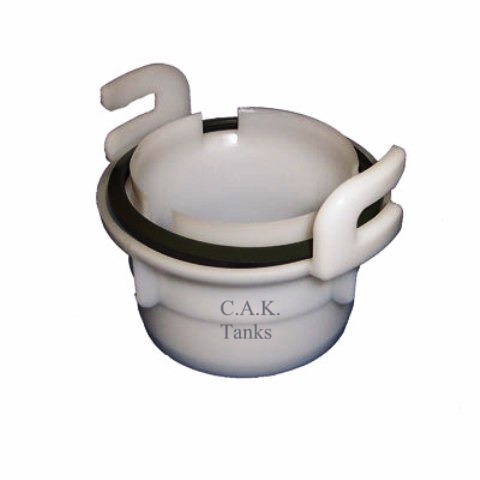

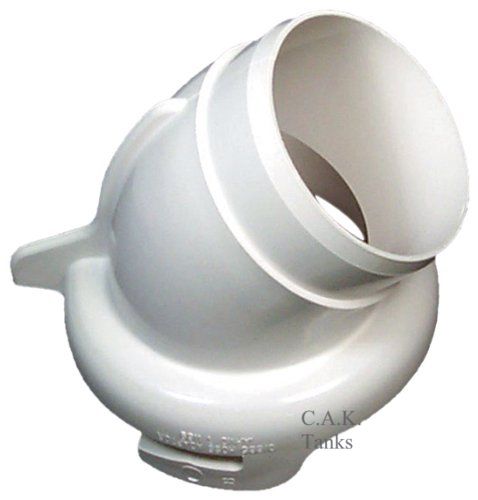

1665 CURVED HOSE BAYONET ADAPTER	2593 BUMPER HOSE BAYONET ADAPTER	1664 BAYONET CAP

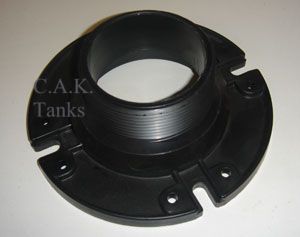

8648 MALE THREADED 3” PIPE 10”	8529 MALE THREADED 3” PIPE 8”	2621 CLOSET FLOOR FLANGE FEMALE THREAD	2620 CLOSET FLOOR FLANGE MALE THREAD



1952 DOUBLE ENTRY COLLECTOR	7580 CLOSET FLOOR FLANGE PLAIN (NPT)

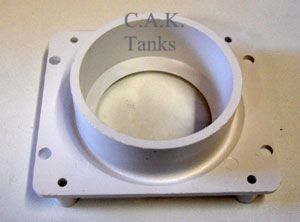

8737 SLIDE VALVE TO ADAPTOR SCREWS	1457 ADAPTOR SEAL BOND ON SLIDE VALVE	H7S 3” FLEXI DISCHARGE HOSE / MTR	HC7 3” HOSE CLIP FOR H7S DISCHARGE HOSE	H7FL 3” LAYFLAT DISCHARGE HOSE / MTR



PERMANENT TOILET DISCHARGE HOLDING TANKS
Toilet discharge holding tanks are available from our vast range of standard
sizes. See tank illustrations at beginning of catalogue. A simple installation
scheme drawing is published here, see right. Technical and system design
advice available. Full range of Thetford spares and accessories supported.

WE ARE THETFORD’S PREMIER SPARES & SERVICE CENTRE. WE ARE ABLE TO SUPPLY ANY THETFORD SPARE PART THAT IS CURRENTLY AVAILABLE & QUITE A RANGE OF OBSOLETE PARTS. WE HAVE THE FACILITIES TO INSTALL SERVICE AND REPAIR THE FULL THETFORD PRODUCT RANGE.
