Click on the coloured band below to download a PDF of this catalogue section



cak tanks 45 55 camper stabilising jacks

Model 45 & 55 Camper Jacks

The Stabilising Jacks are designed for use with Caravans, Motorhomes, Trailers and Specialist Vehicles requiring a steadying load capacity of 450 kg per jack. Fashioned in steel and protected by galvanised finish, this stabilising jacks differ from the traditional scissors design and affords notable practical advantages

in operation. Just a few seconds are needed to move the jacks into the operating or the stowed travelling position.



FITTING INSTRUCTIONS

* The jacks can be bolted (preferred method) or welded. Bolt the mounting flange to a suitable surface

using self-locking nuts and bolts. In selecting a suitable position always take into consideration the 450-kg load capacity per jack.

* In some situations it may prove necessary to fabricate a bracket off the chassis/body to mount the jacks. In

this case make sure it is sufficient to take the 450-kg per jack loading.

* NB : in the stowed position, the jacks require a minimum inboard clearance of 350mm for model 45, and

450mm for model 55 (see fig 2).



DIRECTIONS FOR USE

* The jacks have two detent positions, stowing horizontally for traveling and angled downwards for use.

* Simply pull the leg to the point of freeing the spring-loaded catch from the detent slot. Lock the leg in the

jacking position detent.

* Lower the leg initially by holding down the locking tab and allowing inner jack tube to slide out to rest on the ground.

* Insert the jack rod through the front socket (fig3), ENSURING THAT THE END LOCATES IN THE SOCKET IN THE REAR WALL OF THE LEG, and apply downward hand pressure, with little effort the inner leg will extend down. Repeat the action until the vehicle or trailer is stable.

* To release the jacks, apply pressure to the locking tab, which can be loosened by tapping smartly with the rod if need be. The leg can now be retracted by hand without difficulty and swung upwards to lock automatically in the stowed position (fig 2)



TECHNICAL DATA

Material: Heavy gauge steel

Protection: Zinc plated

Jack pad footprint: 25cm 2 per jack

Adjustment: MDL 45 290mm to 450mm

MDL 55 390mm to 550mm

Stabilising capacity: 450kg per jack static

Jacking capacity: 300kg per jack

The jacks are available in pairs, packaged as a kit with one jacking rod.

ATSJ45G MDL 45 jack kit galvanised

ATSJ55G MDL 55 jack kit galvanised

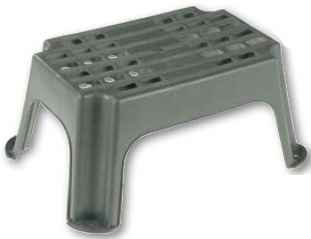

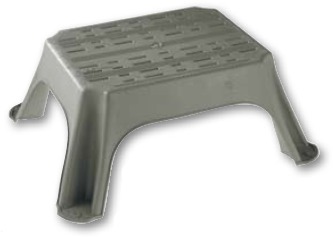

Portable entrance steps ESP601G & ESP603G

PLASTIC PORTABLE ENTRANCE STEP

New portable plastic entrance steps for caravans & motorhomes produced in high grade grey plastic. Produced in two versions. ESP603G our standard step has a safe load of 150 kg and dimensions of 410mm x 270mm x 220mm. ESP601G our OEM spec step is designed to meet EN1645 - 1646 for supply by manufacturers with original equipment. The step has a greater safe load of 250kg and larger dimensions of 450mm x 350mm x 250mm.

ESP601G ENTRANCE STEP PLASTIC GREY EN SPEC

ESP603G ENTRANCE STEP PLASTIC GREY STANDARD



LEVELLING BLOCK SETS

Level blocks are designed to level up your vehicle on uneven pitches. Simply place the leveling

chocks in front of the wheel you wish to raise and drive up the ramp slowly. Made of strong plastic,

they are easy to clean and will not corrode. SUPPLIED 2 X BLOCKS IN A NEAT STORAGE BAG.

LVC3230 LEVEL BLOCKS STANDARD CARAVAN

LVC3231 LEVEL BLOCKS TRIO MOTORHOME

LVC3232 PAIR OF ANTI SLIP PLATES FOR LEVEL BLOCKS

LVC3233 LEVEL BLOCKS DUO MOTORHOME



ALUMINIUM FOLDING EXTERIOR ROOF ACCESS LADDERS

Supplied with four loose fixing brackets to fix to your choice (shown in photograph affixed for clarity). Folding stirrup on lower folding section to distance ladder away from bodywork for safe climbing. Ladder side rails extended above top rung to provide hand grip loop for safety while getting on and off the roof. Product may differ to picture.Spare mounting brckates available. BLFSFB

BLF3210 Folding access ladder 9 steps & fixing brackets

BLFLOCK Security lock for BLF3210



DOMETIC PREMIUM AWNINGS MANUAL & ELECTRIC MODELS

As the world’s leading manufacturer of recreational vehicle awnings, Dometic has covered all approaches to

motorhome awnings. This new motorhome awning eclipses its competitors by doing away with inconvenient

support struts. This means you can use the entire space in front of your recreational vehicle. It completely

eliminates the awkward, time-consuming setup of conventional awnings.

Both the Manual & Electric awnings show-stopper is the arm joint manufactured from forged steel – patent

pending. This focal component of the ingenious mechatronics facilitates use of the awning without support struts. The electric variant of the Dometic Premium Awning is an innovation that is particularly convenient and safe. The electric version in particular is thus the benchmark regarding convenience and safety, fully automatic and operated at the touch of a button on the remote control. Also as standard on electric models is a wind sensor automatically retracts the awning when wind force reaches critical levels.

All optional items for the awning range available to order.



CAREFREE FREEDOM AWNINGS- 12 VOLT AND MANUAL AWNINGS

• Sleek Look, Light Weight

• Same Small box design no matter the awning length

• Mounts using awning rail or mounting brackets

• Support arms adjust easily with flip lock controls

• Patented floating roller technology that keeps roll tube straight and canopy tight

• Features sturdy Aluminium Case and end caps- No Plastic!

• Full or partial extension- if you don’t have the space to fully extend, you can stop at any point and set up the Freedom Awning

• Manual override on 12v model in case of power loss

The Carefree Freedom Awning is available in Wall or Roof Mount Versions. It can be operated by simply holding a button (12 volt models) or by easily winding the crank. Due to the arms being stored within the lead bar they are never far from reach. There is a choice of 3 magnificent hardware colours and 2 stunning vinyl options. If you already have a Freedom Manual awning and would like the Electric Version then don't despair! Upgrading to an Electric Version is easy. All you would need is the 12v Upgrade Kit, which will fit into your existing Carefree awning hardware.







C.A.K. Tanks Water Systems

We have specialised for over 40 years in the manufacture & supply of water storage systems for original equipment and aftermarket installation.


We developed the first plastic water storage tanks for Caravans, Motor-Homes and Marine applications, with our own revolutionary designs and
patented C.A.K Tanks Anti-Surge Baffles.



Years of continuous design, development and manufacture have formulated the renowned quality and reliability of C.A.K. Tanks Water Storage Systems.


Our vast range of solutions & superior technical knowledge has enabled us to develop our ever expanding range of water systems making C.A.K. TANKS THE COMPLETE WATER SYSTEMS SPECIALIST

MANUFACTURING SINCE 1968



Leisure Equipment Specialist
Interior Equipment & Spare Parts

See our comprehensive online shop LeisureLines.netsm for full details.



To complement our water systems expertise we also have extensive stocks of :- Water pumps, Taps, Showers, Fittings, Hose, Air and Water Heaters, Vents, Webasto Heating systems, LED Internal and external lighting, SMEV high quality kitchen appliances, CBE high specification Electrical control and charging systems, Thetford Cassette, C200, C250, C400, Porta Potti, Galaxy, Starlite, Mk IV, MK V, Electra Magic and American Toilet Range, Thetford Chemicals and Maintenance products, Vitrifrigo DC Compressor Freezers & Refrigerators, Dometic & Thetford Gas 3 way Refrigerators, Air Conditioning, Bathroom Sinks, Cabinets & Shower Trays, Table legs, Catches Locks, Furniture Fittings, Seat swivels, Seitz Heki Rooflights, SmartliteTM Interior Lighting Range, Boat and Caravan Mains Electric Water Heaters, Reversing Cameras, Bunk ladders, Internal cab window Thermal ScreensTM, Bilge and Macerator pumps, Cassette Blinds, Hatches, Doors, Roof vents, Cassette Blinds, Stabilising Jacks and many more items too numerous to list.



C.A.K TANKS THE PREMIER SOURCE FOR ESSENTIAL MOTORHOME, CARAVAN & MARINE EQUIPMENT.














THE COMPLETE WATER SYSTEMS AND INTERIOR EQUIPMENT SPECIALIST



E & OE All Trademarks acknowledged. All prices are correct at time of going to press and are inclusive of VAT. All prices are subject to change without notice. All prices are quoted in Sterling. All offers are subject to availability. Please note that carriage charges are based on the Mainland UK only with some postcode exceptions.
